| otor | P 520DX Art.nr: 967 98 52‑01 |
| Motortillverkare | Kubota |
|---|---|
| Motornamn | D 902 |
| Nettoeffekt vid förinställt varvtal, kW | 14,5 kW |
| Cylindervolym | 898 cm³ |
| Cylindrar | 3 |
| Motorkylning | Vätska |
| Bränsletyp | Bensin |
| Typ av motorsmörjning | Fullt trycksmord |
| Oljefilter | Yes |
Avgasutsläpp (CO2 EU V) | 1 047 g/kWh |
| Batteri | |
| Batterityp | Bly/Syra |
| Batterikapacitet | 62 Ah |
| Batterifabrikat | Exide |
| Vikt på batteripack | 14 kg |
| Klippaggregat | |
| Oklippt cirkel | 55 cm |
| Cutting width, min-max | 132-155 cm |
| Cutting height, min-max | 30-112 mm |
| Aktivering av knivarna | Elektrisk inkoppling |
| Dimensioner | |
| Däckdimension, fram | 20x8-10 |
| Däckdimension, bak | 20x8-10 |
| Hjulbas | 106 cm |
| Markfrigång | 140 mm |
| Maskinbas, höjd | 133 cm |
| Maskinbas, längd | 207,8 cm |
| Bredd, maskinbas | 113,2 cm |
| Vikt (exklusive skärutrustning) | 649 kg |
Max dragvikt | 350 kg |
| Drivsystem | |
| Typ av växellåda | Hydrostatisk |
| Transmissionsfabrikat, bak | Kanzaki |
| Transmissionsfabrikat, fram | Kanzaki |
| Transmissionsmodell, bak | KTM 23SA |
| Transmissionsmodell, fram | KTM 23LA |
| Drivningsmetod | Dual pedal-operation |
| PTO (Power Take Off) | Shaft drive |
| Hastighet framåt, max | 17,5 km/h |
| Hastighet bakåt, max | 13,5 km/h |
| Utrustning | |
| Timräknare | Digital |
| Sätesmaterial | Vinyl |
| Sätesupphängning | Ja |
| Höjd på sätesrygg | Hög |
| Fällbart säte | Ja |
| Sitstyp | Fjädrande, armstöd |
| Typ av ratt | Professional |
| Parkeringsbroms | Disc |
| Vibrationer | |
| Vibrationsnivå, ratt | 1,26 m/s² |
| Vibrationsnivå, säte | 0,32 m/s² |
| Ljud och buller | |
| Ljudtrycksnivå vid användarens öra, dB(A) | 88 dB(A) |
| Ljudemissionsmått | 104 dB(A) |
| Ljudeffektnivå, garanterad LWA i dB(A) | 105 dB(A) |
- Översikt
- Information
Artnr: 967 98 52-01

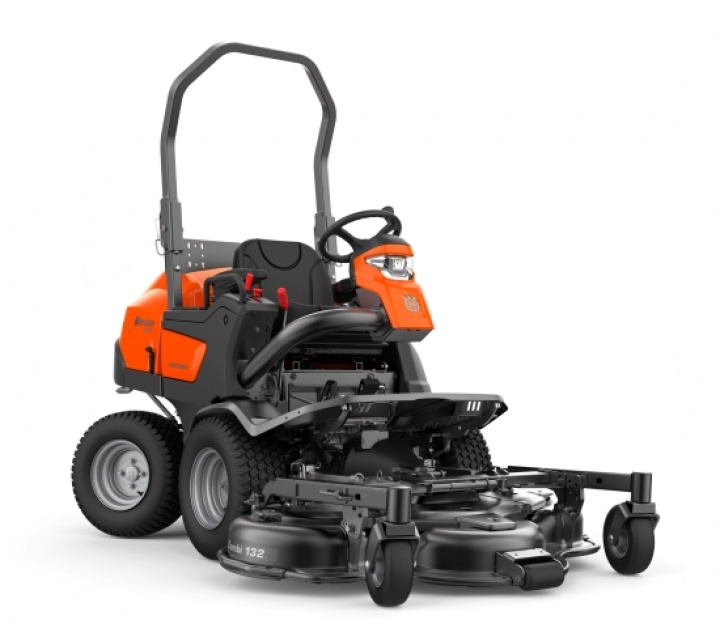

Diesel-powered front mower offering unbeatable manoeuvrability and productivity in complex and narrow environments as well as in larger-sized areas. The commercial graded transmission gives uncompromised traction and slope stability. The machine's compact size makes it suitable both for stationary and mobile application for municipalities, contractors, housing agencies etc. Thanks to the front-mounted cutting deck the operator has perfect overview of the working area. This means optimised trimming ability as well as accessibility under benches, bushes etc. Long-life components for solid durability and less downtime. Attachments such as utility bucket, broom, folding plough and cabin give increased productivity all-year round. Husqvarna P 520DX is delivered deckless and can be fitted with 132 and 155 cm Combi cutting decks.
Kundomdömen
P520DX, exkl. klippaggregat,
207920 kr
